Aluminiomu ati Ṣiṣu Panel Extrusion Panel Composite Line
Aluminiomu ati Ṣiṣu Panel Extrusion Panel Composite Line
Aluminiomu ati Ṣiṣu Panel Extrusion Panel Composite Line
Aluminiomu ati Ṣiṣu Panel Extrusion Panel Composite Line

Aluminiomu ati Ṣiṣu Panel Extrusion Panel Composite Line


Ibi ti Oti:China
Brand Name:Jell
iwe eri:ISO CE UL TUV
Idije anfani:
Didara to gaju, agbara giga, iduroṣinṣin giga, iṣẹ lẹhin-tita ni kariaye, diẹ sii ju ọdun 30 idagbasoke iriri
Fi kun si Agbọn
ohun elo

O kun lo fun inu ati ita ọṣọ.

Apejuwe

Iru igbimọ yii dara fun inu ati ita ọṣọ odi. Iwọn ti o munadoko ti ọja jẹ 1220mm-2050mm, sisanra ti ọja jẹ 1-5mm, ati sisanra ti bankanje aluminiomu jẹ 0.026-0.5mm. Gba apẹrẹ dabaru pataki, 100% awọn ohun elo ti a tunlo, gbe awọn ọja to peye. Agbara iṣelọpọ ga ju awọn extruders miiran lọ. Awọn ọja ti wa ni okeere si Indonesia, Russia, Vietnam ati awọn orilẹ-ede miiran ati agbegbe.

ni pato
awoṣeAgbara (kg / h)Ọja sisanra (mm)Iwọn ọja (mm)Iyara laini Max (m / min)
JWE95/44
Twin dabaru
800-1000900-15601-68
JWE135/48
Twin dabaru
1200-1800900-15602-610
JWS170 / 35
Nikan dabaru
500-600900-12201-65
JWS180 / 35
Nikan dabaru
700-800900-15601-65

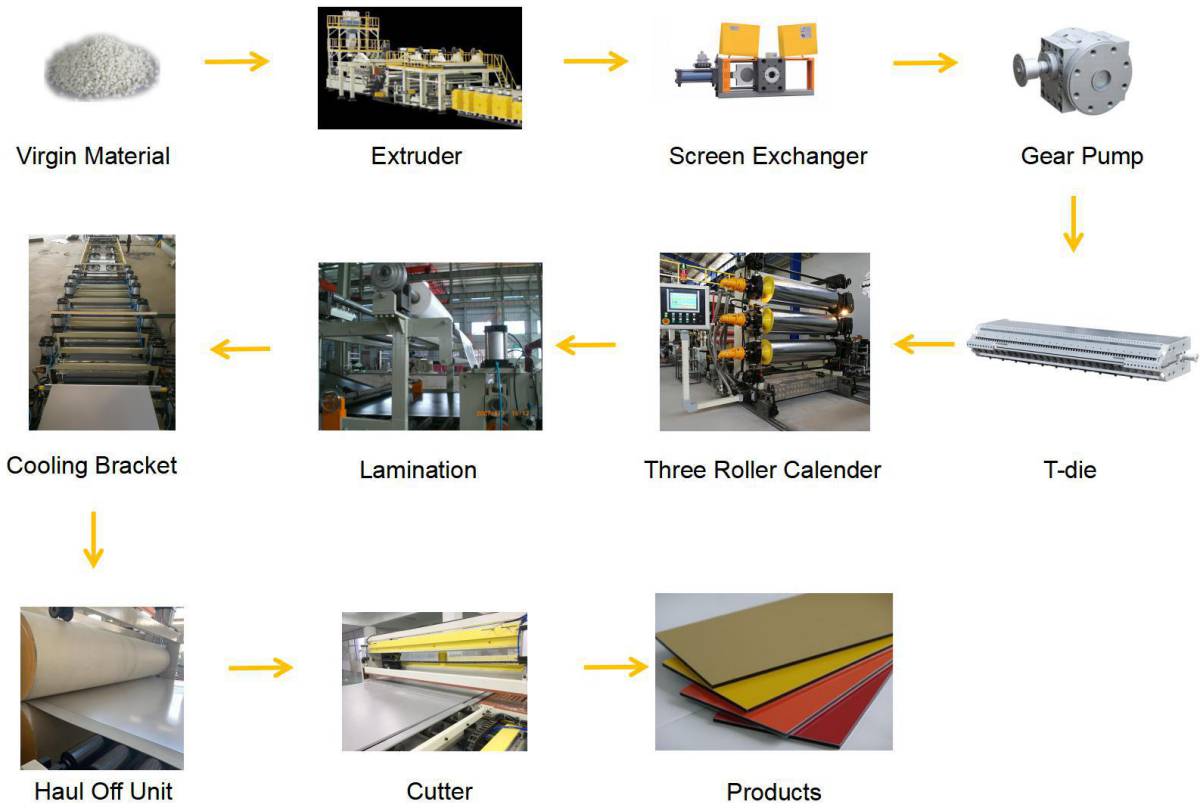

Awọn igbesẹ ilana

itesiwaju

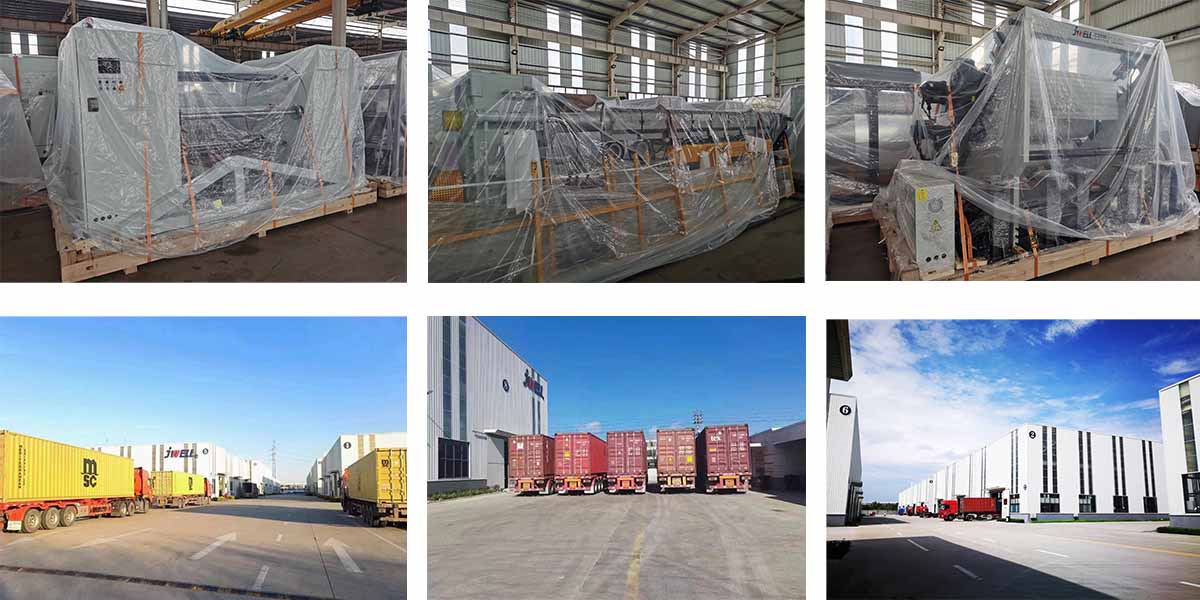

sowo

apoti
